Text3D Component lets you convert any text into a 3D object in Lens Studio.
Tip: To learn more about how to use the Text3D component in Lens Studio, check out the 3D Text Template.
Creating the Text3D Component
To create the
Text3D component. Go to
Objects > +, and type
Text3D object will be added to the scene. You can move this object around like any other 3D object in lens studio.
The Text3D Component
Enter any text in the Text field on the
Text3D component to change the 3D text.
We can also set custom layout, font, alignment and overflow type for the 3D text. These settings work the exact same way as the regular Text component.

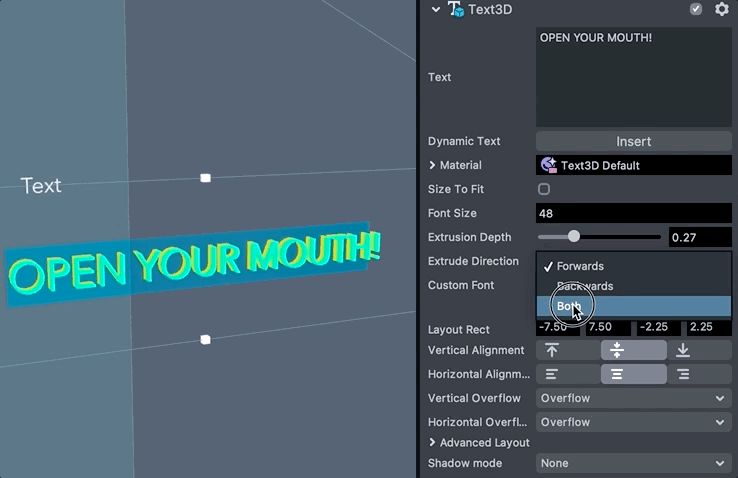

3D Text Extrusion
Text3D component has built-in extrusion settings, try changing the extrusion settings to alter the shape of your text.
3D Text Material
Text3D component is created, a
Text3D Default Material will be created. You can double-click on the material to check out its graph in the Material Editor. There are 4 dedicated sections on this material corresponding to the sides of the generated 3D text: Front, Back, Out and Inner edge.
Each of the section has color and render settings correlating to the section of the text. Edit these to create vibrant effects for your custom 3d text in Lens Studio!
